QDD-400G-DR4-S
Cisco 400G QSFP-DD Transceiver, 400GBASE-DR4, MPO-12, 500m parallel SMF
The Cisco 400GBASE Quad Small Form-Factor Pluggable Double Density (QSFP-DD) portfolio offers customers a wide variety of super high-density transceiver modules and the flexibility of 400 Gigabit Ethernet connectivity options for data center, high- performance computing networks, enterprise core and distribution layers, and service provider applications. The QSFP-DD modules are our new generation of 400G transceiver modules based on a QSFP-DD form factor.
د.إ800,00د.إ750,00
Product Overview
- Built-in Broadcom 7nm DSP Chip, Max. Power Consumption 10W
- SiPh-Based Technology for Lower Power, Cost and Higher Density
- Tested in Targeted Switches for Superior Performance, Quality, and Reliability
- Compliant with QSFP-DD MSA CMIS Rev4.1, OIF 56G PAM4 and 100G Lambda MSA
- Support 4x 100G Breakout to QSFP-DR-100G
- FS BOX V4.0 – Support Real-time Configuration
- High-speed Electrical Compliant to IEEE 802.3bs
- QSFP-DD Port is Backward Compatible with QSFP+, QSFP28 and QSFP56 Modules

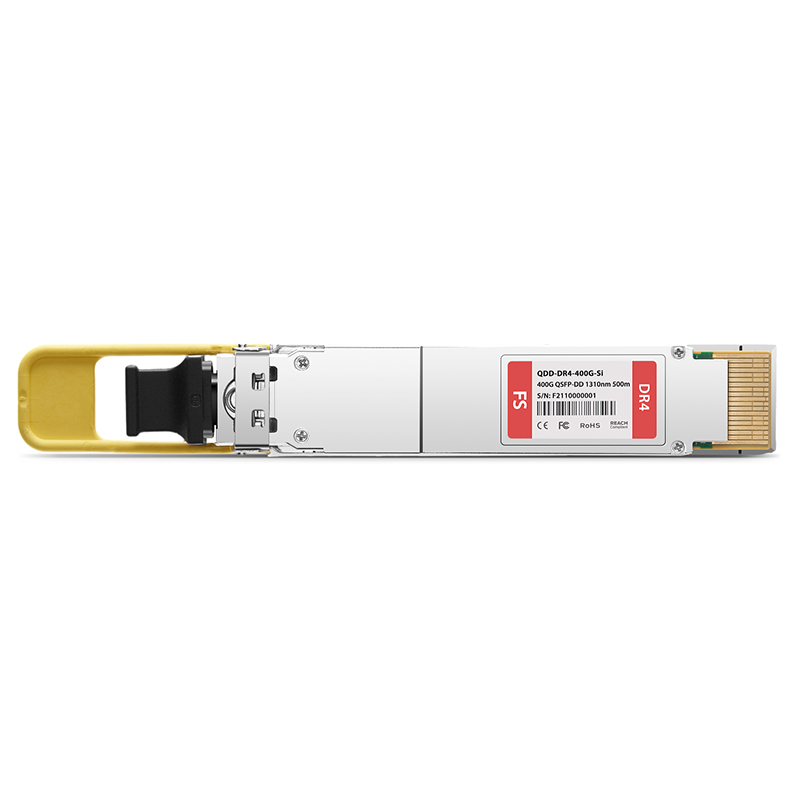

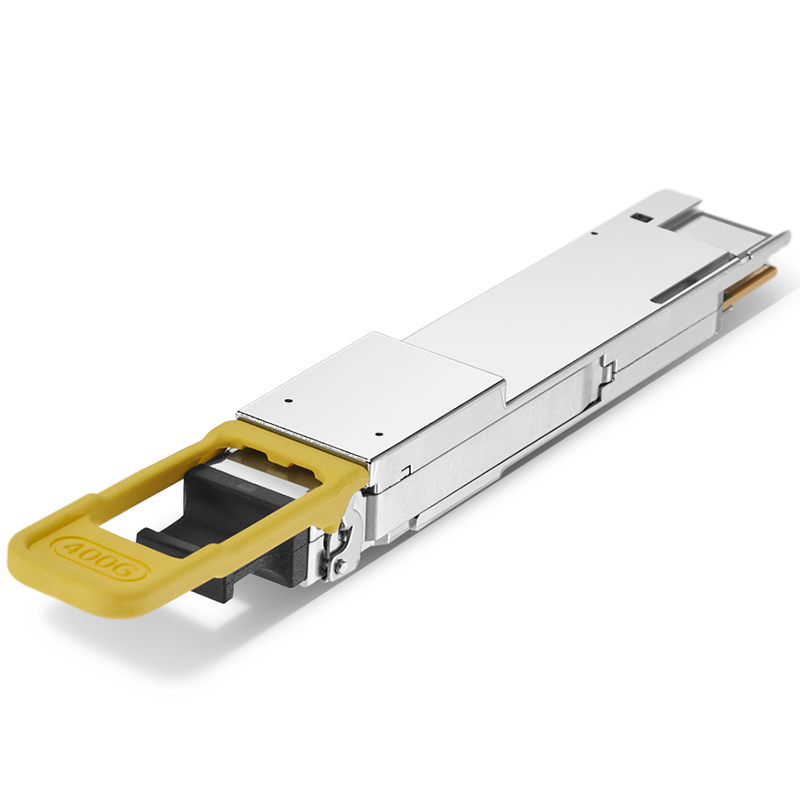

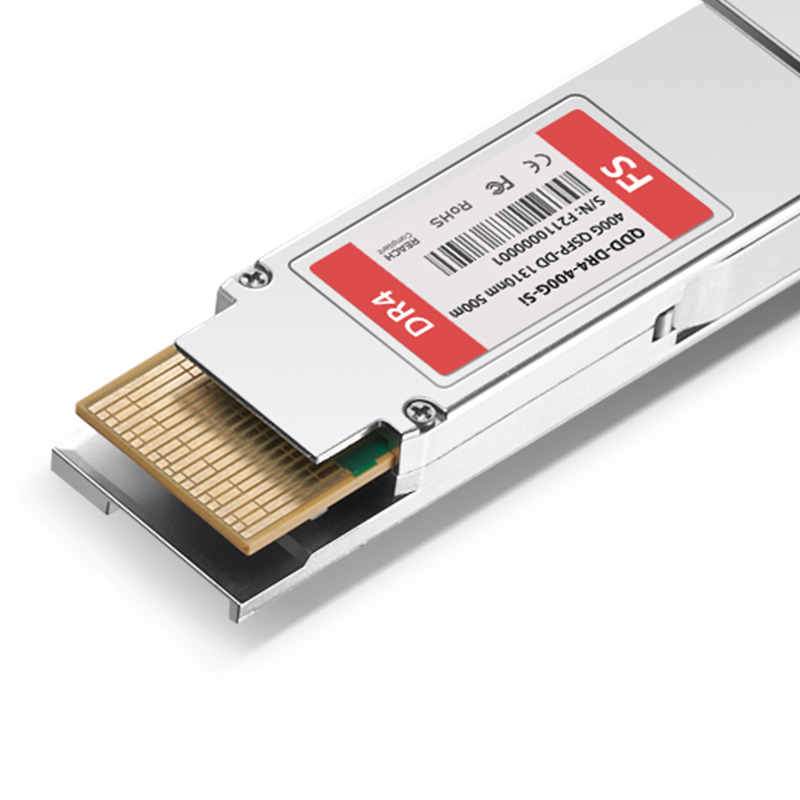

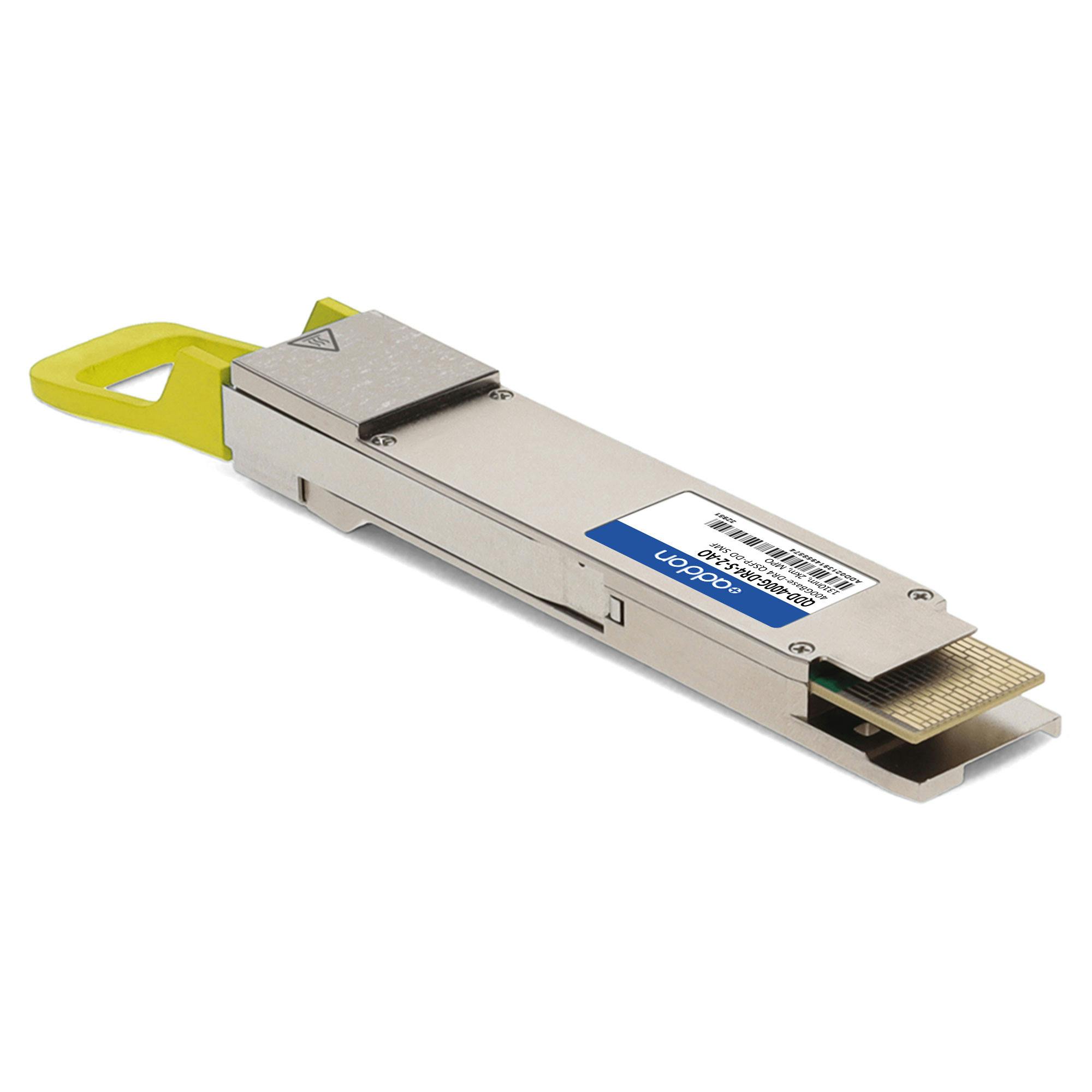

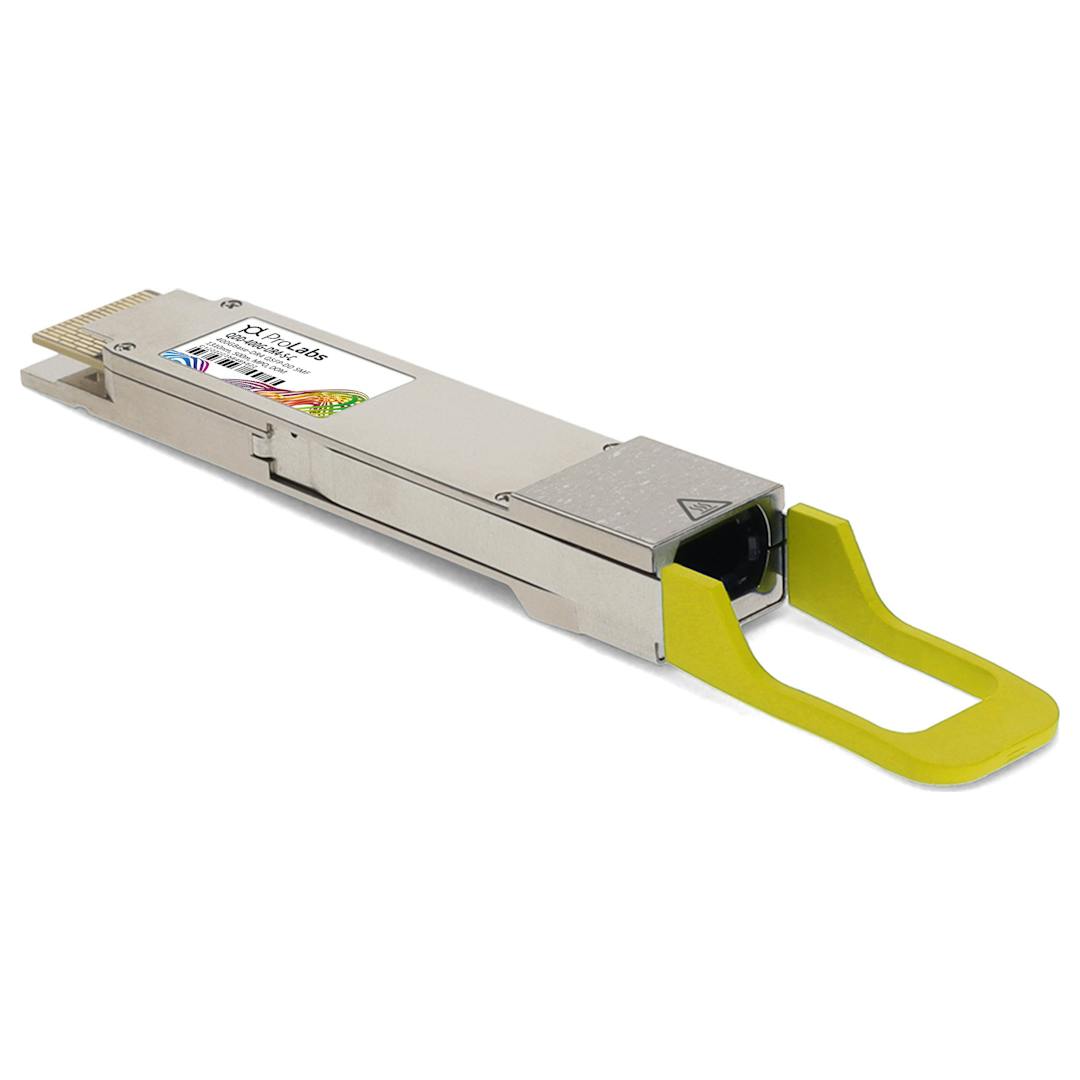

Cisco QDD-400G-DR4-S Compatible 400GBASE-DR4 QSFP-DD PAM4 Silicon Photonics Transceiver Module (SMF, 1310nm, 500m, MPO-12, DOM)
The 400GBASE-DR4 silicon photonics module, MPO-12 connector, up to 500m over parallel single-mode fiber. It is compliant with QSFP-DD MSA, IEEE 802.3bs protocol and 400GAUI-8 standards.
The 400 Gigabit Ethernet signal is carried over four parallel lanes by one wavelength per lane. It can be used as a 4x100G breakout to QSFP-DR-100G.
